TH84CB03FB

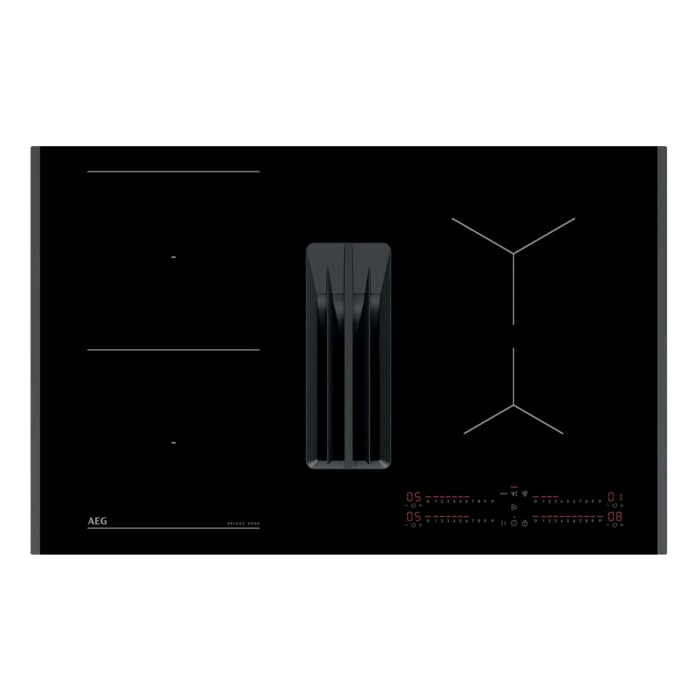

6000 Induction Extractor Hob 80 cm

Name: 6000 Induction Extractor Hob 80 cm
Brand: AEG
SKU: TH84CB03FB
Price: 1999.99 GBP
Availability: InStock
Rating: 4.6 (31 reviews)

4.6 (31)

Product Information Sheet

Product Benefits

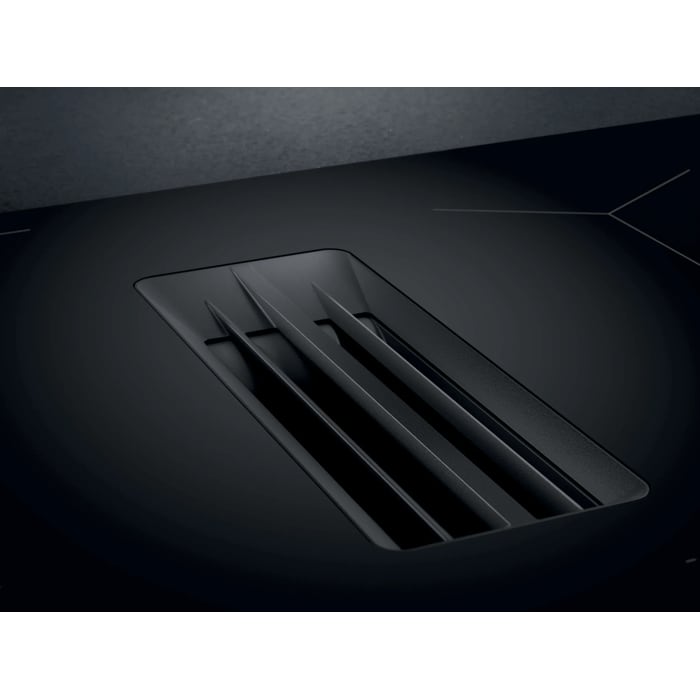

The 6000 Bridge Extractor Hob combines induction and extraction.
Bridge Extractor Hob: Induction & Extraction in one.
OdourClean Plus Carbon Filter can be cleaned and re-used.

Options to make buying even easier

Home delivery
Free
Free 5 Year Warranty Included
Free
Recycling of your old appliance
£25

Options to make buying even easier

Home delivery
Free
Free 5 Year Warranty Included
Free
Recycling of your old appliance
£25

Frame TypeBevelled 2 Sides

Dimensions (mm) (WxD)810x520

Built-in Dimensions (mm) (HxWxD)225x750 - 780x490

Air Outlet (mm)220

Grease Filter TypeOdour Clean Carbon Filter

Number of Grease Filters2

Aperture Cut Out (mm)5

Energy RatingA+

Product Documents

specification SheetDownload PDF

user ManualDownload PDF

energy LabelDownload PDF

product information sheetDownload PDF

installation GuideDownload PDF

Installation Specifications

Installation ChartOpen Image

Specification

ComboHob: 2-in-1 combination of hob and extractor fan.
Residual heat indicators: Show when the hob surface is still hot after use.
PowerBoost: Gives an instant increase in temperature allowing water to boil in less than 90 seconds.
Child lock safety function.
Auto safety switch off: The power automatically turns off if a cooking zone is left on for too long.
Bridging function: Combines 2 cooking zones allowing flexibility for any size pan.
Inverter motor
Grease filter indicator.
Charcoal filter indicator.
Grease filter type and number: Odour Clean Carbon Filter, 2
Minute minder: Set the minute minder to remind you which dishes have finished cooking.
EcoTimer™: Saves energy by using the residual heat from the hob, turning off the cooking zone before the end of your timer to boost efficiency.
Automated extraction: Auto mode adjusts the extractor fan based on hob temperature changes, so you can focus entirely on cooking.
Pause functionality allows you to take short breaks without losing your cooking settings.
Extraction mode: A ducting kit is attached to the hood to extract cooking vapours externally, keeping the kitchen free from odours.
Recirculation mode: The hood captures cooking vapours, filters the air through the charcoal filter, and recirculates clean air back into the kitchen, keeping it free from odours.

Performance

Grease Filter Type: Odour Clean Carbon Filter
Number of Grease Filters: 2
Left Front - Power/Diameter: 2300/3200W/210mm
Left Rear - Power/Diameter: 2300/3200W/210mm
Right Front - Power/Diameter: 1400/2500W/145mm
Right Rear - Power/Diameter: 1800/2800W/180mm
Number of Cooking Zones: 4
Hob Type: Induction Extractor Hob
Ducted Extraction Rate - Min/Max/Intensive (m³/h): 650/550/270
Hob2Hood Connection: Yes

Installation

Dimensions (mm) (WxD): 810x520
Built-in Dimensions (mm) (HxWxD): 225x750 - 780x490
Air Outlet (mm): 220
Aperture Cut Out (mm): 5
Cord Length (m): N/A
Plug or Hardwired: Hardwired connection only
Extraction Type - Recirculation: Yes
Extraction Type - Ducted: Yes
Net Weight (Kg): 17.8
Gross Weight (Kg): 21.7

Energy

Energy Rating: A+
Fluid Dynamic Efficiency Rating: A
Grease Filter Efficiency Rating: B

Other

Product Number (PNC): 949 598 492
Frame Type: Bevelled 2 Sides
Motor Type: Brushless
Bar Code: 7333394075822
Series: 6000
Recirculated Extraction Rate - Min/Max/Intensive (m³/h): 250/480/585
Ducted Noise Level - Min/Max/Intensive (dB): 50/66/69

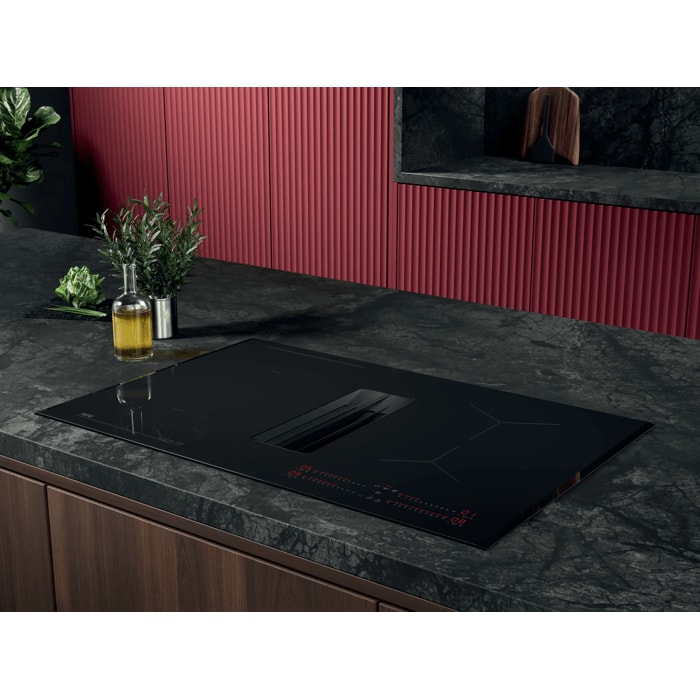

The Bridge Extractor Hob. For greater kitchen freedom

The Bridge Extractor Hob combines an induction hob for 60cm cabinets with a powerful built-in extractor for optimal airflow. Its Bridge function merges two cooking zones at the same temperature, ideal for bigger pots or plancha grill.

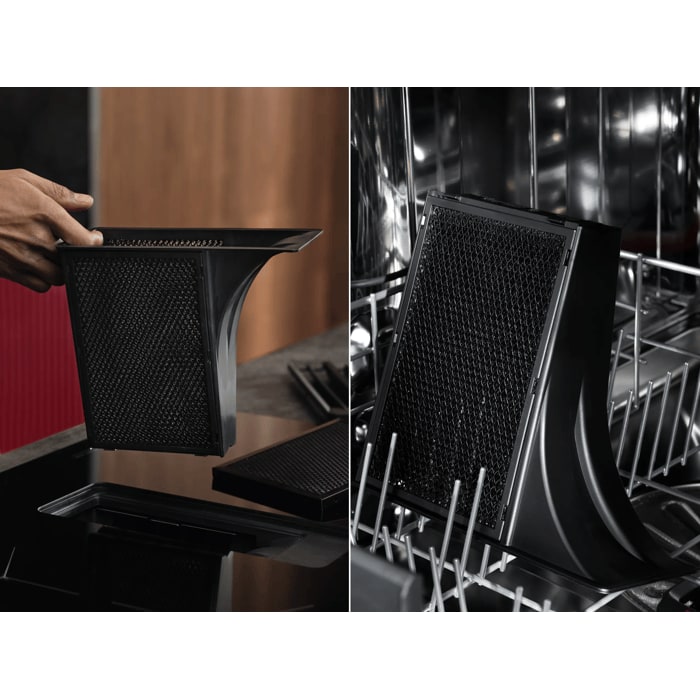

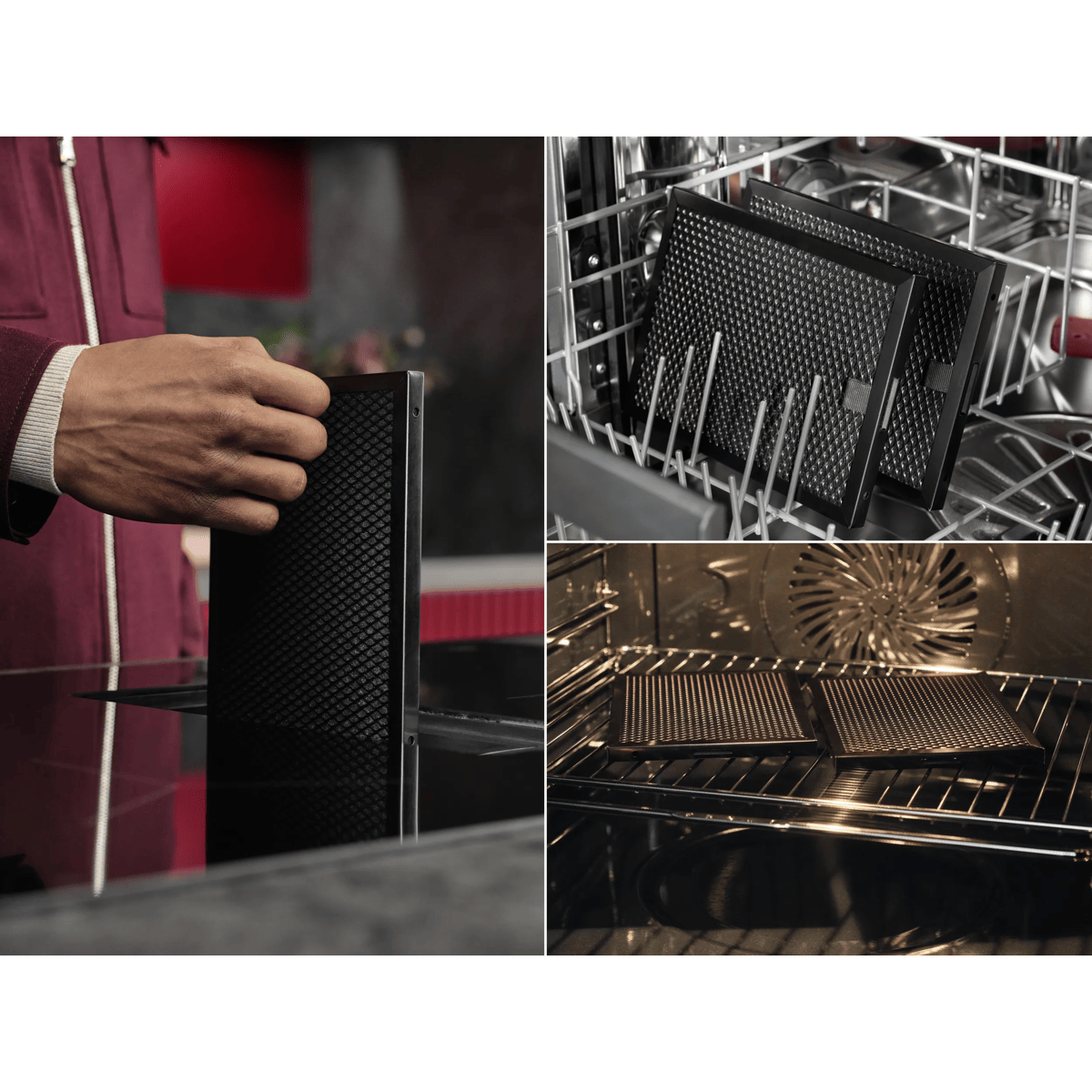

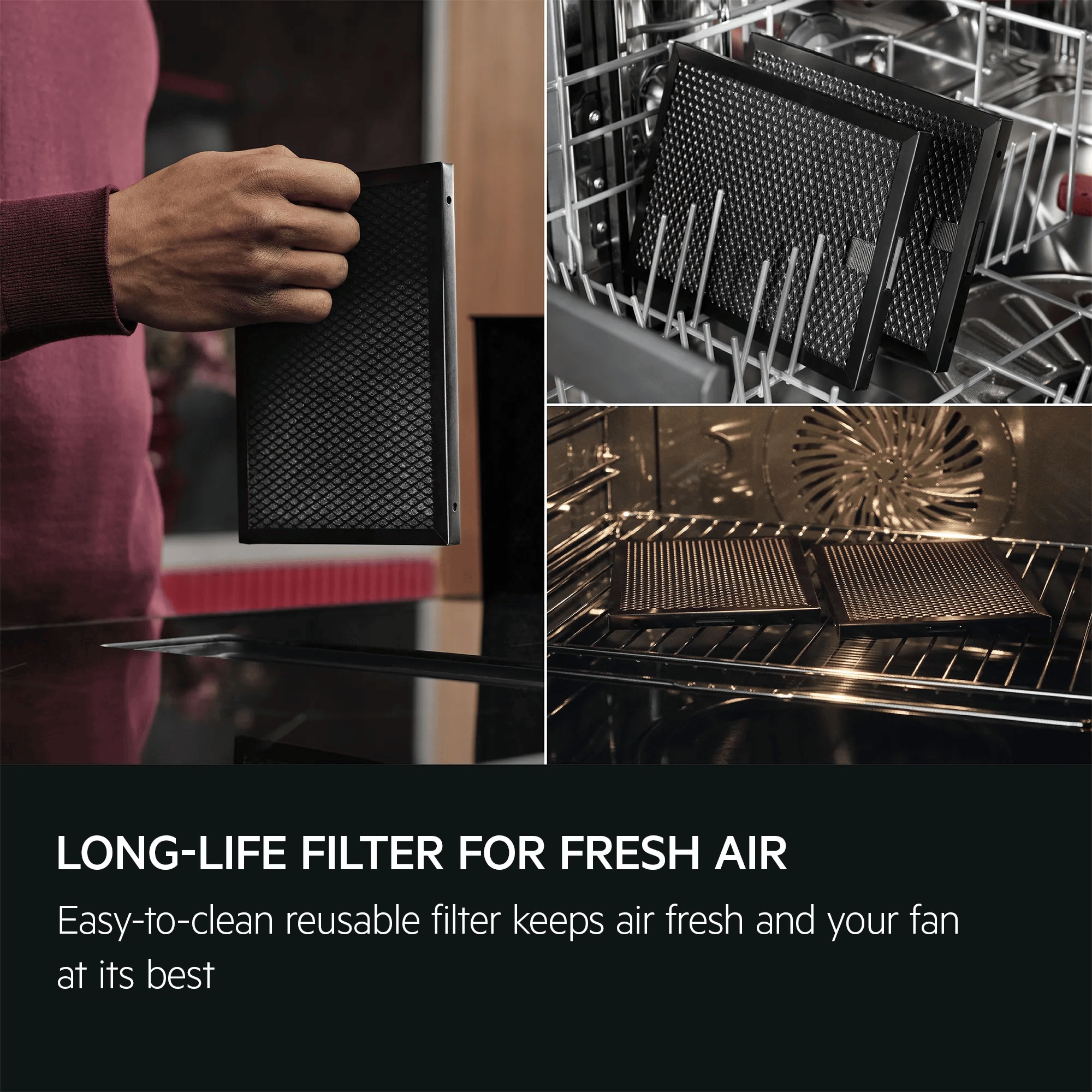

OdourClean Plus Carbon Filter. Clean and re-use multiple times

The Grease Filter and OdourClean Plus Carbon Filter are easy to clean in the dishwasher, so your kitchen air stays fresh, and your fan runs at its best for longer. Carbon filters can after cleaning be regenerated up to 8 times for extended life up to 3 years.

*The stated lifespan is an estimate based on internal testing. Performance may vary depending on individual usage patterns and conditions; actual lifespan may be shorter or longer.

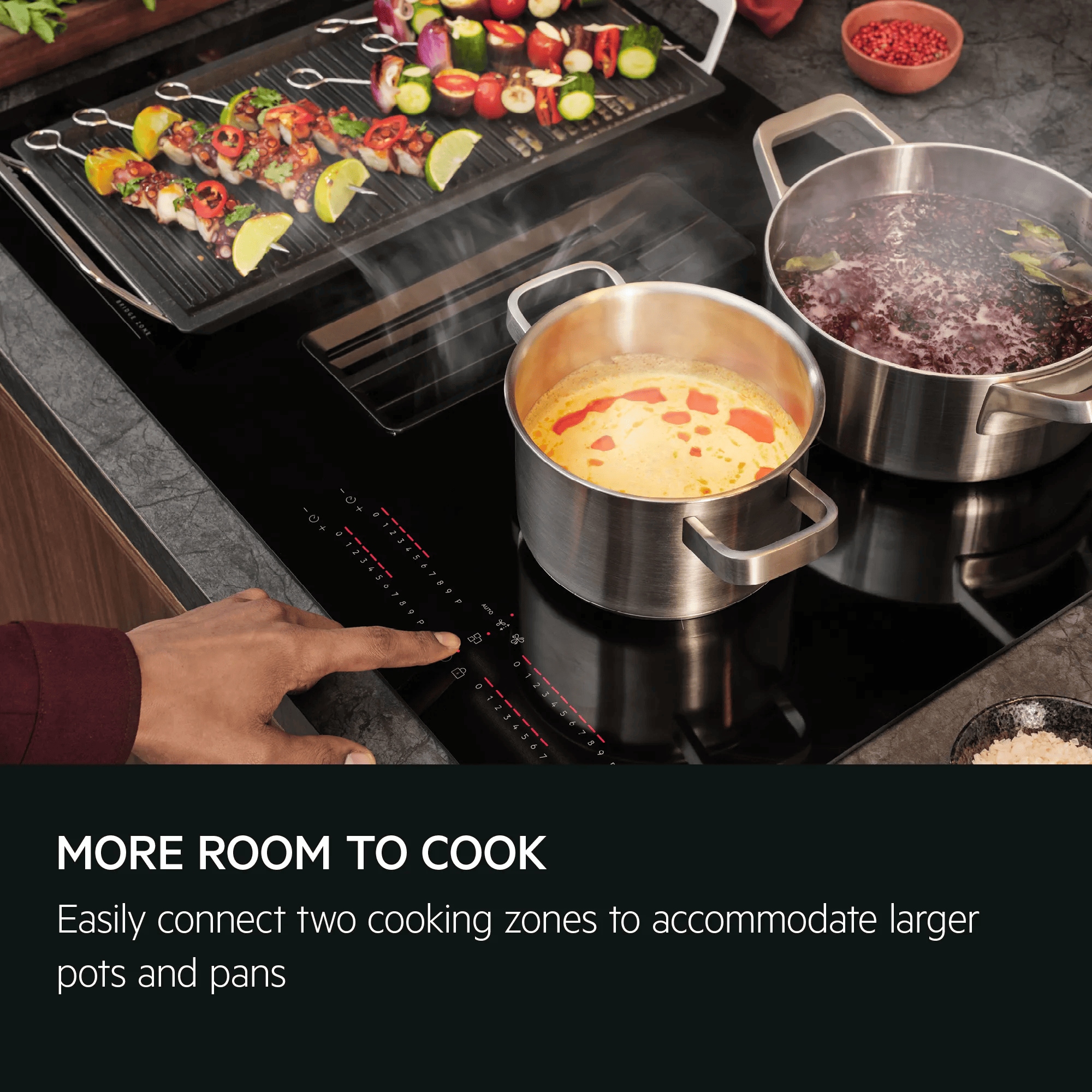

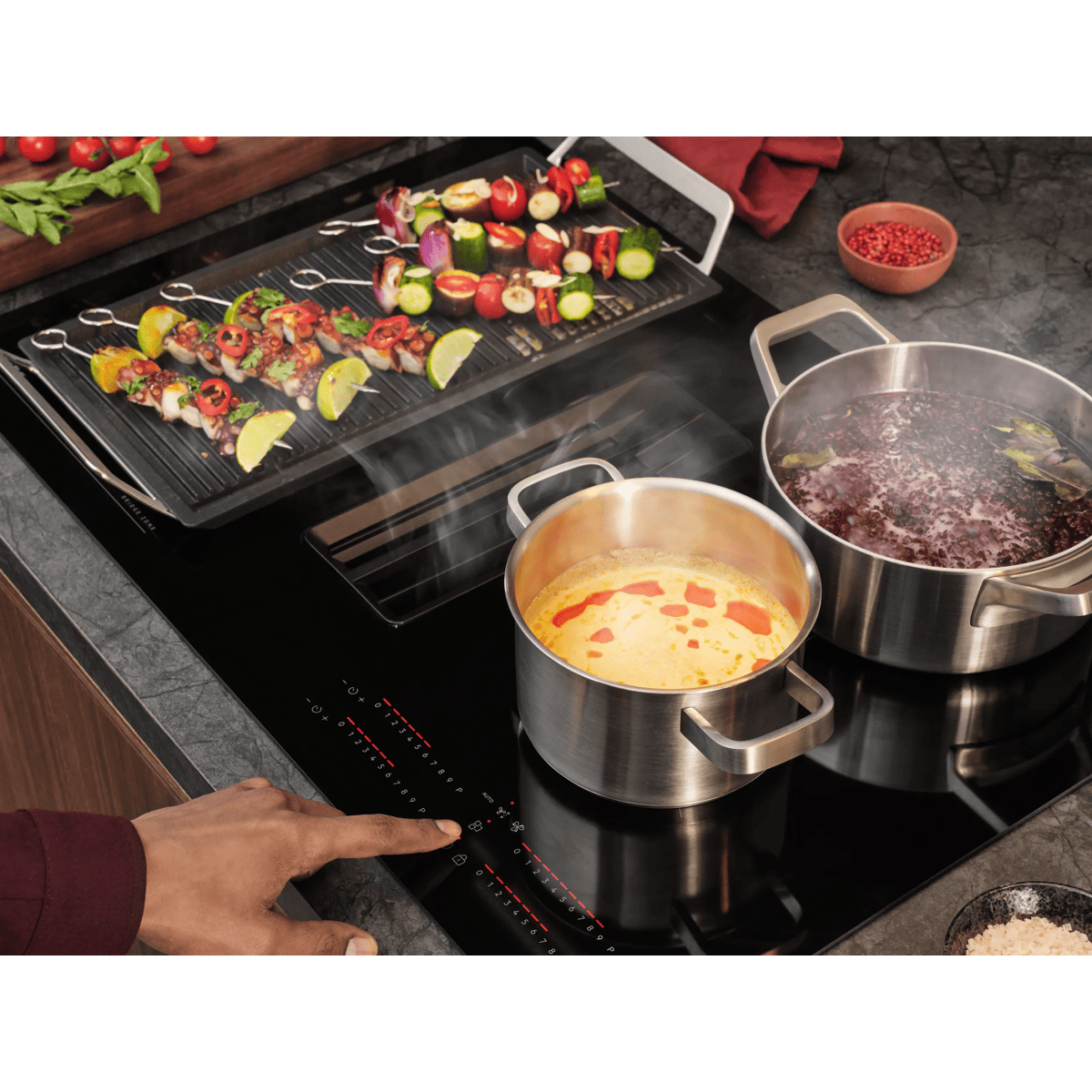

Flexible cooking with the Bridge Function

The Bridge Function allows you to connect two separate cooking zones to create a large, unified cooking area. This means even heat distribution is created over the entire surface – ideal for bigger pots or plancha grill.

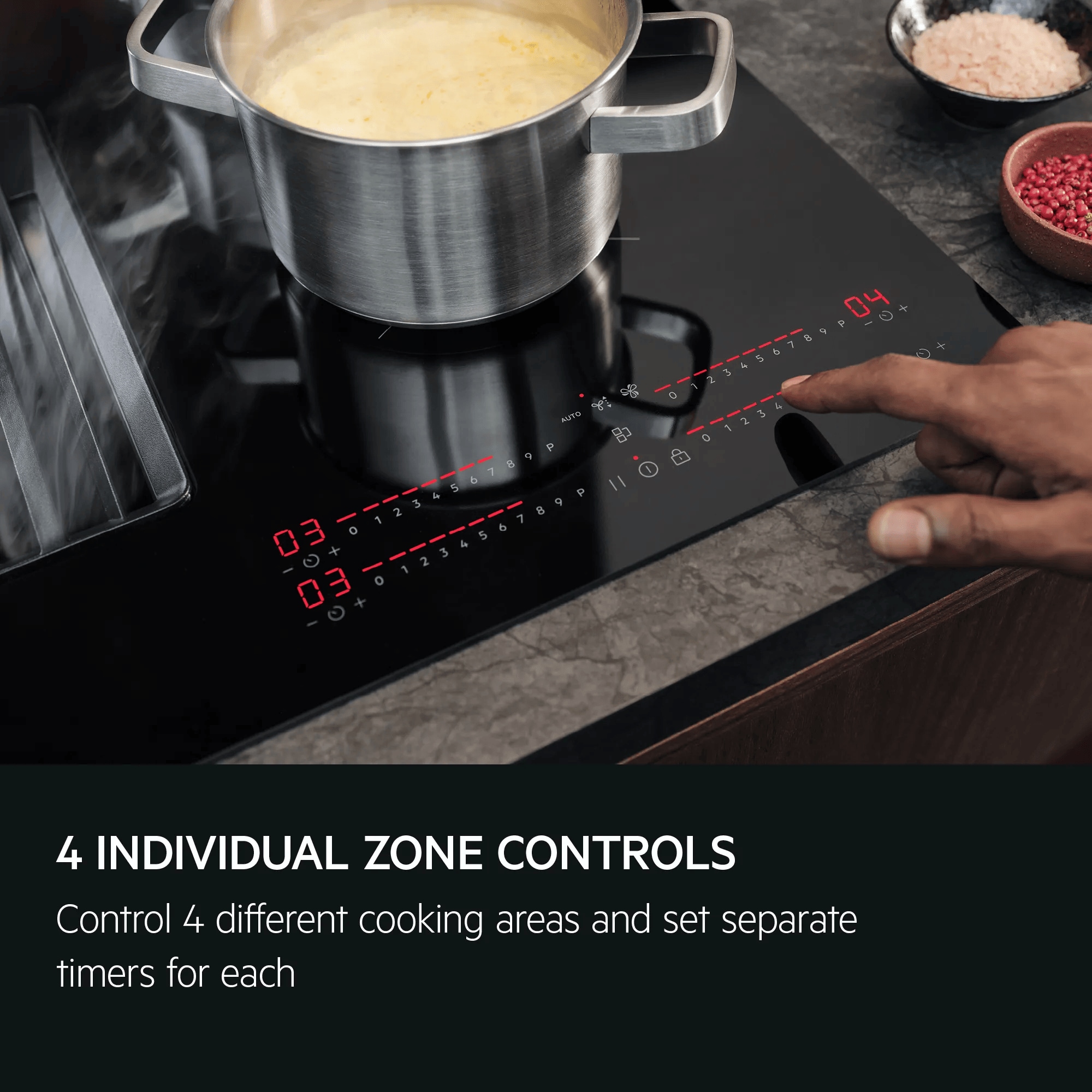

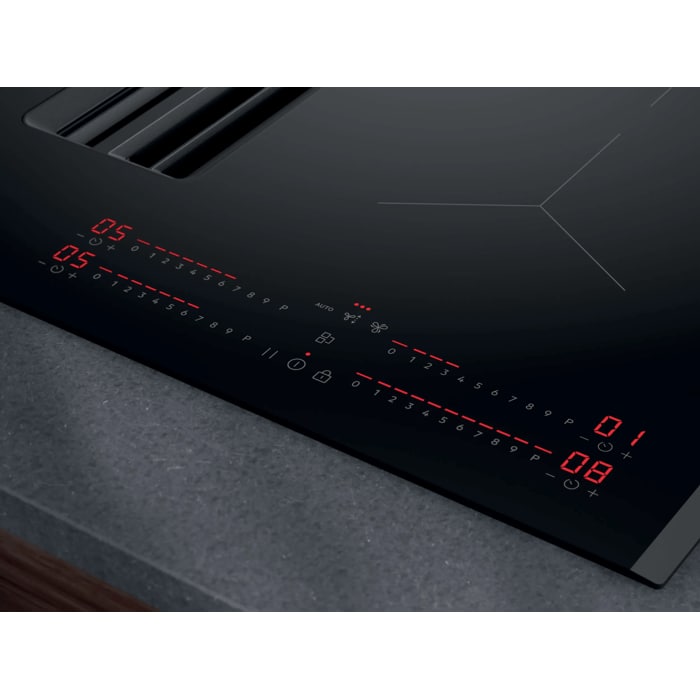

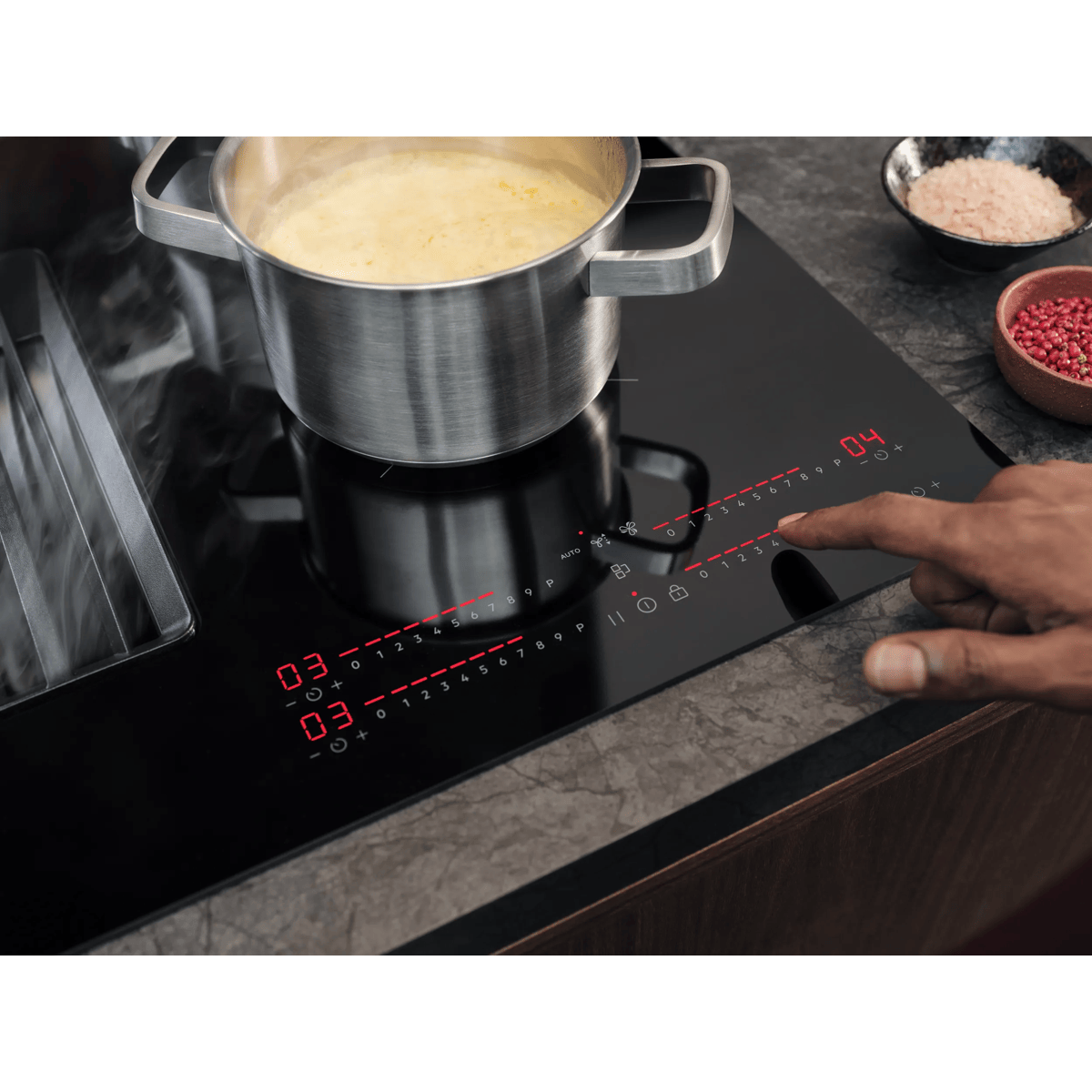

4 Individual Zone Controls. Unlimited cooking options

4 Individual Zone Controls, with 9 power levels, allow you to Individually control 4 different cooking areas and set separate timers for each. Other functions include power boost, active touch, child lock and automatic extractor control.

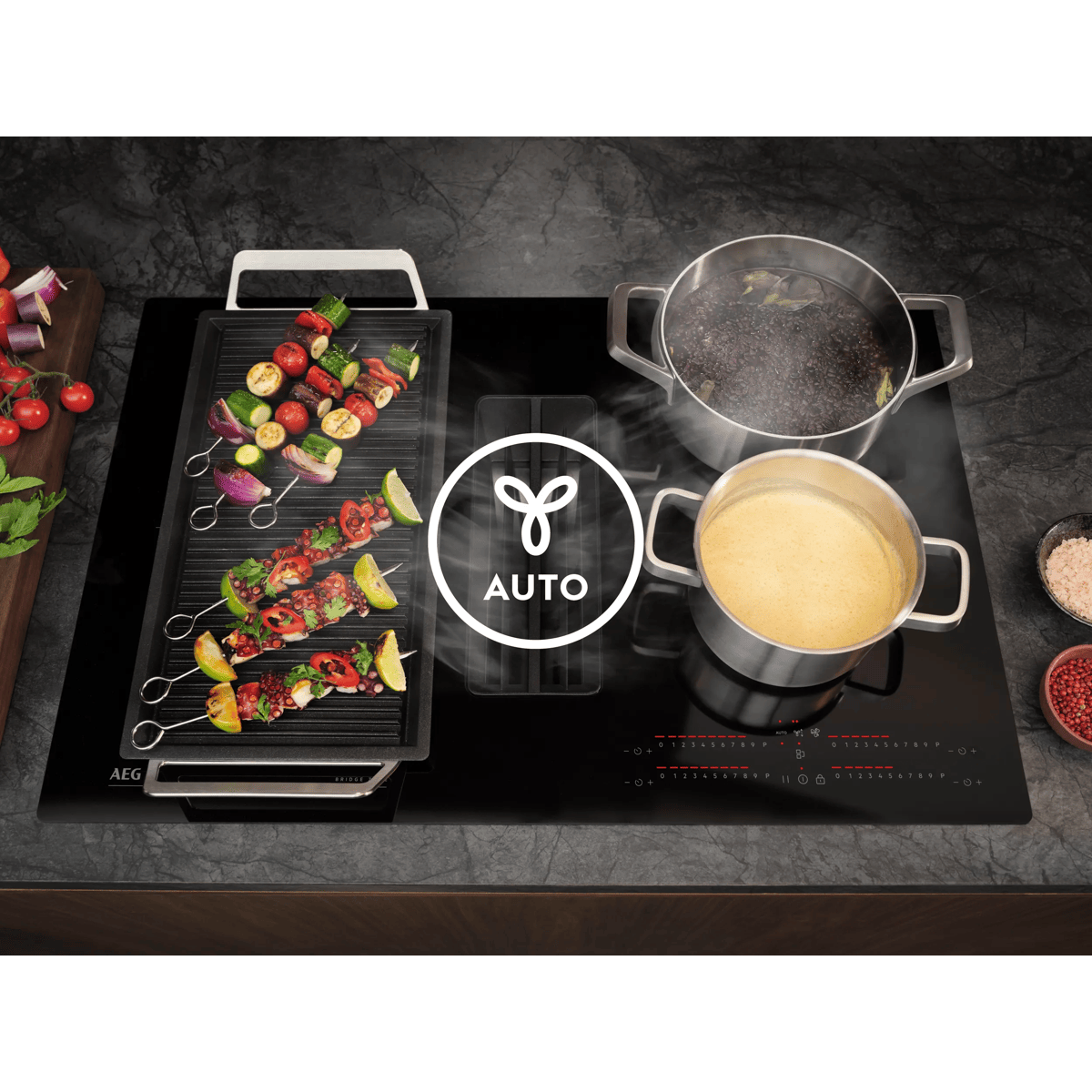

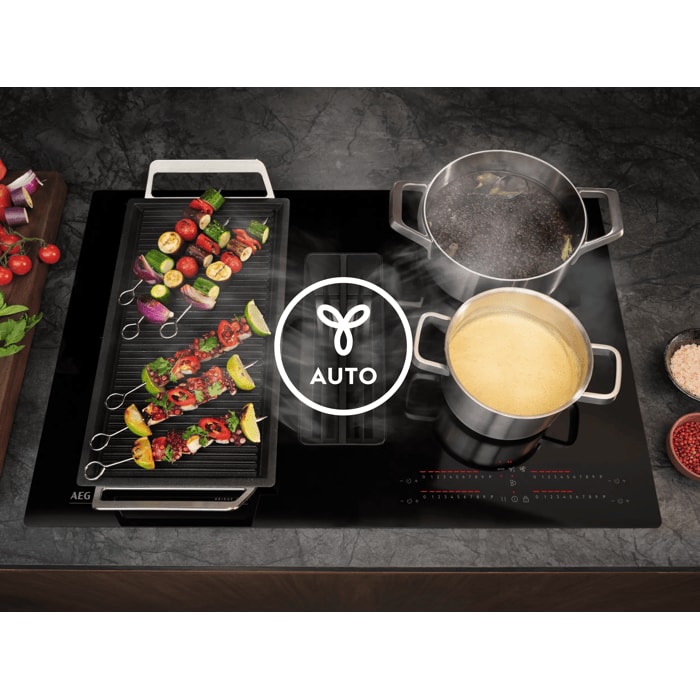

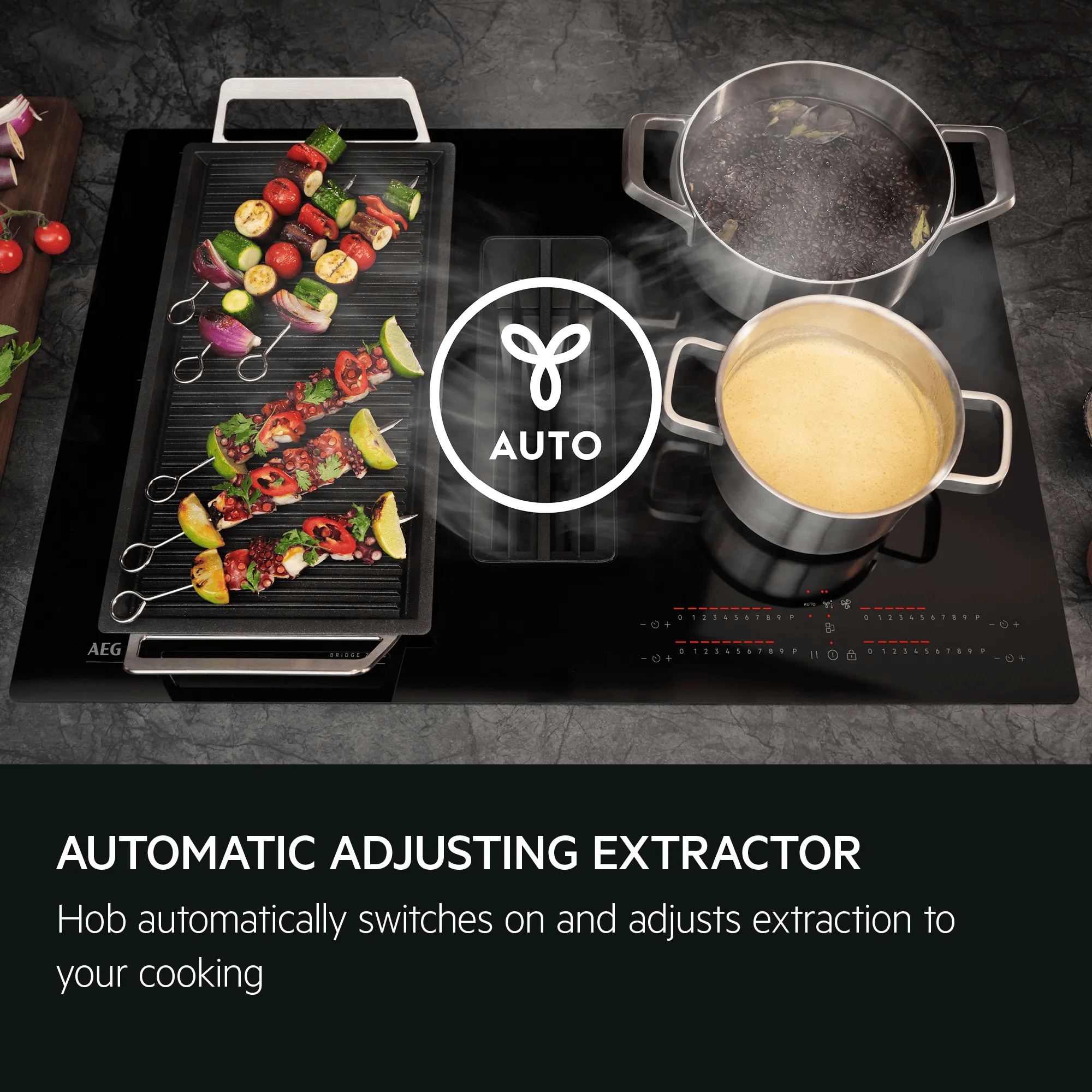

Automatic Extractor Control. Adjusts as you cook

Automatic Extractor Control allows you to focus on what matters – cooking. The hob will automatically switch on and adjust the extraction level according to your cooking activities, keeping your kitchen fresh and hands free.
